Butt Weld Fittings
We offer a comprehensive range of Buttweld Fittings manufactured from premium-grade materials to meet various industrial applications.
These fittings are available in materials like Stainless Steel (ASTM A403 WP304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L),
Carbon Steel (ASTM A234 WPB, A420 WPL3, WPL6, MSS-SP-75 WPHY 42/46/52), Alloy Steel (ASTM A234 WP1, WP5, WP9, WP11, WP22),
Duplex & Super Duplex (UNS S31803, S32750, S32760), as well as High Nickel Alloys like
Monel (400, K500), Inconel (600, 601, 625, 718, 725), Incoloy (800H/HT, 825, Alloy 20, A286), and
Hastelloy (B2, C276, C22).
We supply these Buttweld Pipe Fittings in sizes ranging from 1/4" NB to 24" NB (Seamless) and
4" NB to 72" NB (Welded) with wall thicknesses from Sch 5s to Sch XXS.
The product range includes Elbows (1D/1.5D/3D/5D), Return Bends, Equal Tees,
Reducing Tees, Cross Tees, Long & Short Stubends,
Reducers (Concentric & Eccentric), and End Caps.
Our Buttweld Fittings are widely used in Oil & Gas, Petrochemical,
Power Generation, Pharmaceutical, and Water Treatment industries
due to their durability, corrosion resistance, and precise engineering.
| Specification | Details |
|---|---|
| Material Grades |
Stainless Steel: ASTM A403 WP304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Duplex & Super Duplex: UNS S31803, S32750, S32760 Carbon Steel: ASTM A234 WPB, A420 WPL3, WPL6, MSS-SP-75 WPHY 42/46/52 Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22 Monel: ASTM B366 Monel 400, K500 Inconel: ASTM B366 Alloy 600, 601, 625, 718, 725 Incoloy: ASTM B366 Alloy 20, 800H/HT, 825, A286 Hastelloy: ASTM B366 B2, C276, C22 Copper Alloys: Brass, Pure Copper, Cupro Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500) |
| Size Range | 1/4" NB to 24" NB (Seamless), 4" NB to 72" NB (Welded) |
| Wall Thickness | Schedule 5s to Schedule XXS |
| Types |
Elbow (1D, 1.5D, 3D, 5D), Return Bend, Equal Tee, Reducing Tee, Cross Tee, Long & Short Stubend, Concentric Reducer, Eccentric Reducer, End Cap, Dish End Cap |
| Standard | ASME B16.9 / B16.28 / MSS SP-43 / MSS SP-75 |
| Applications |
Oil & Gas, Petrochemical, Power Plants, Chemical Processing, Water Treatment, Pharmaceutical, Offshore & Marine, Pulp & Paper |
Dimensional Standards Table of Butt Weld Fittings
| Fitting Type | Size (Inch) | Dimensions (mm) | Wall Thickness (SCH 40) | Standard | |
|---|---|---|---|---|---|
| Outer Diameter (OD) | Center-to-End (C) | ||||
| Elbow 90° | 1/2" | 21.3 | 38 | 2.77 | ASME B16.9 |
| 3/4" | 26.7 | 38 | 2.87 | ||
| 1" | 33.4 | 38 | 3.38 | ||
| Elbow 45° | 1/2" | 21.3 | 16 | 2.77 | ASME B16.9 |
| 3/4" | 26.7 | 22 | 2.87 | ||
| 1" | 33.4 | 25 | 3.38 | ||
| Tee | 1/2" | 21.3 | 25 | 2.77 | ASME B16.9 |
| 3/4" | 26.7 | 29 | 2.87 | ||
| 1" | 33.4 | 38 | 3.38 | ||
| Reducer | 1/2" x 3/8" | 21.3 x 17.1 | 25 | 2.77 | ASME B16.9 |
| 3/4" x 1/2" | 26.7 x 21.3 | 29 | 2.87 | ||
| 1" x 3/4" | 33.4 x 26.7 | 38 | 3.38 | ||
| End Cap | 1/2" | 21.3 | 25 | 2.77 | ASME B16.9 |
| 3/4" | 26.7 | 29 | 2.87 | ||
| 1" | 33.4 | 38 | 3.38 | ||
Types of Butt Weld Fittings

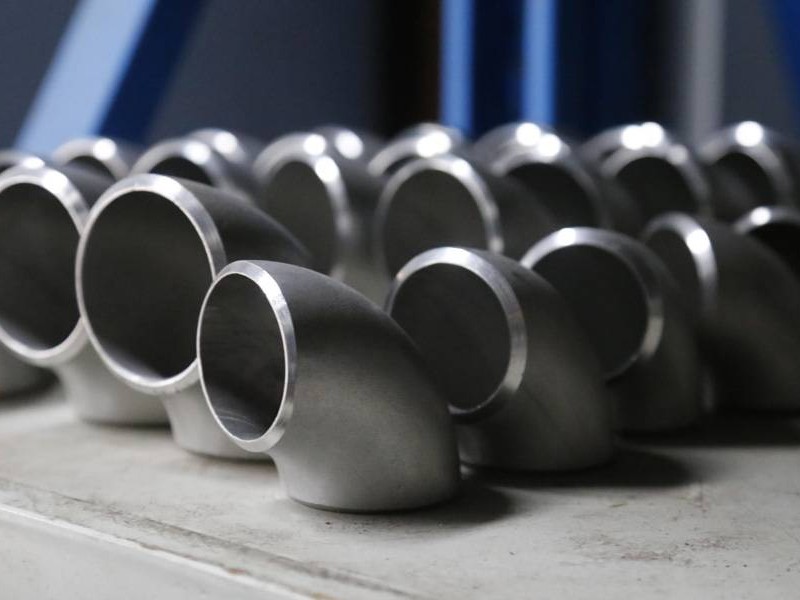

Elbow (90°, 45°, 180°, Male/Female)
An elbow is a type of buttweld pipe fitting used to change the direction of flow in a pipeline. The most common types are 90-degree, 45-degree, and 180-degree elbows, which allow for various directional changes. Additionally, male and female elbows are used for specific joint connections. These fittings ensure smooth fluid flow and are commonly used in industries such as oil & gas, petrochemicals, and power plants.

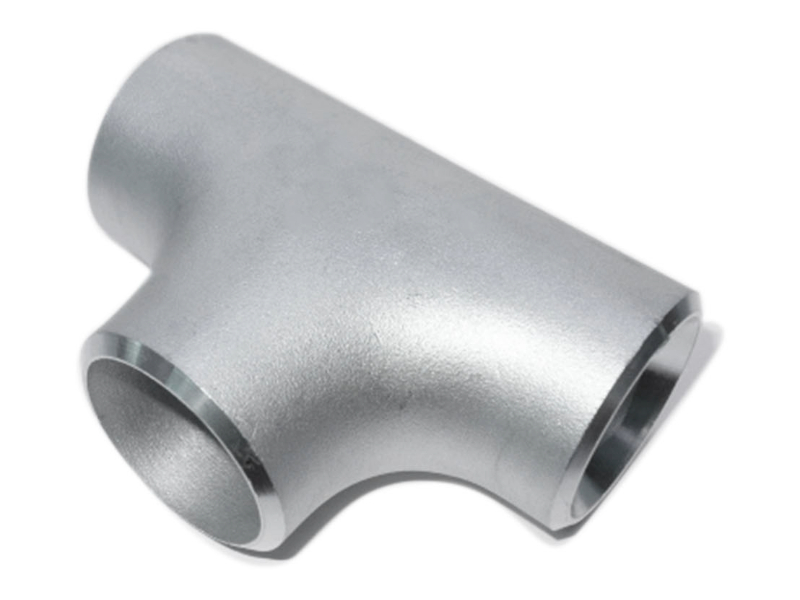

Tee (Equal Tee, Reducing Outlet Tee)
A tee is a buttweld pipe fitting used to combine or split the flow of fluids in a pipeline. It has three openings – one inlet and two outlets at 90° angles to the main line. There are two main types: Equal Tee, where all three outlets have the same diameter, and Reducing Outlet Tee, where one branch outlet has a smaller diameter. These fittings are widely used in plumbing, chemical, oil & gas, and water distribution applications.

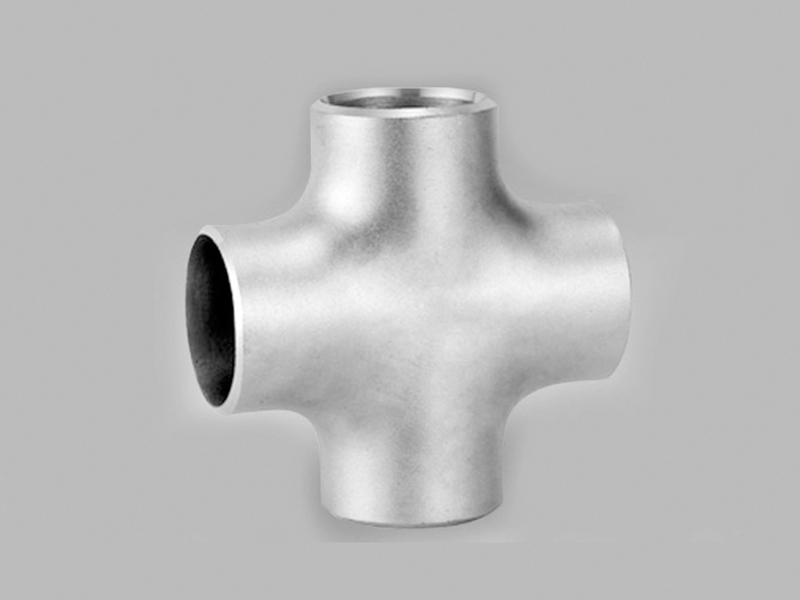

Cross (Equal Cross, Reducing Cross)
A Cross is a buttweld pipe fitting used where four pipes meet at a common junction. It has one inlet and three outlets (or vice versa) positioned at 90° angles to each other. The two main types include Equal Cross and Reducing Cross. Cross fittings are commonly used in fire sprinkler systems, chemical processing plants, and high-pressure applications.

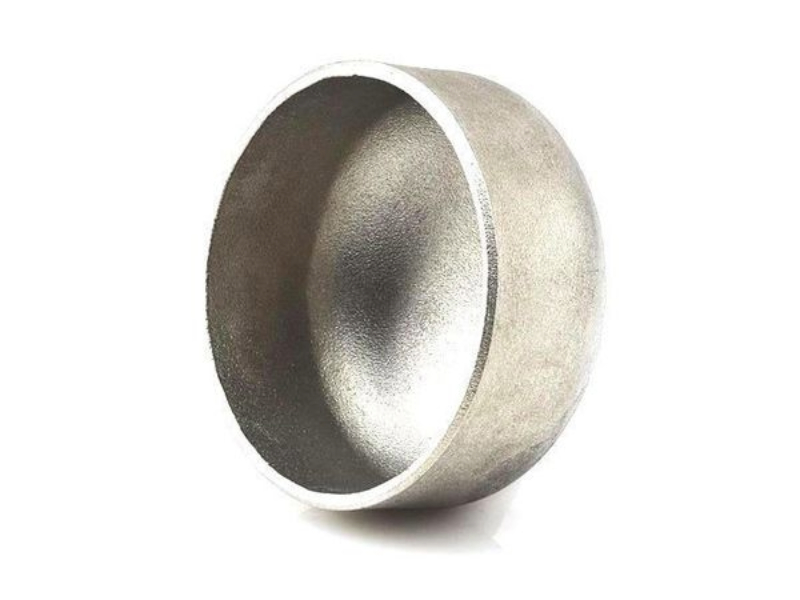

Cap (Pipe End Cap)
A Pipe Cap is a buttweld fitting used to close the end of a pipe, stopping the flow of fluids or gases. It protects pipe ends from damage, contaminants, and environmental exposure. Caps are commonly used in plumbing, industrial piping, and high-pressure applications to provide a secure, leak-proof seal.

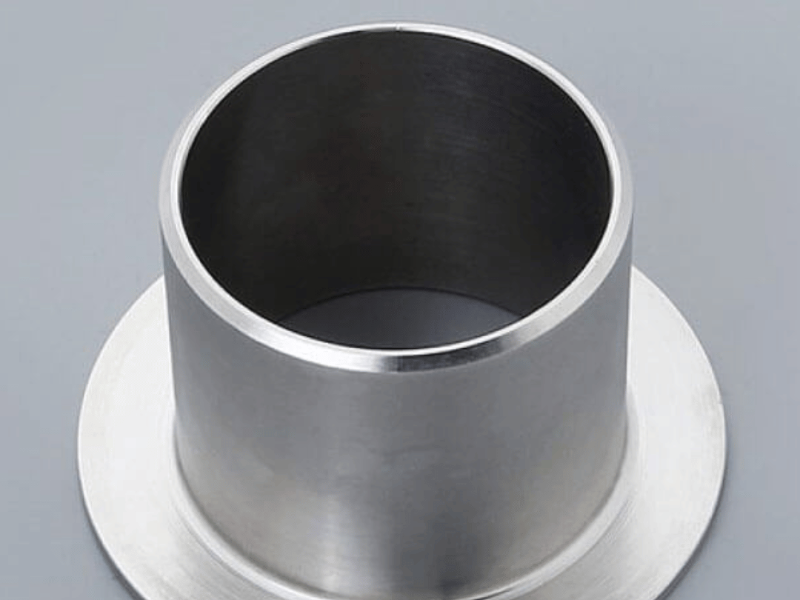

Stub End (Lap-Joint Stub End)
A stub end is a short pipe fitting used in combination with a lap joint
flange
to create a flanged connection that allows easy dismantling and rotation. It is commonly used in systems
that require frequent disassembly for maintenance or alignment adjustments.
Lap-Joint Stub End provides flexibility in pipe alignment and reduces the stress on bolts,
making it ideal for low-pressure and non-critical applications.

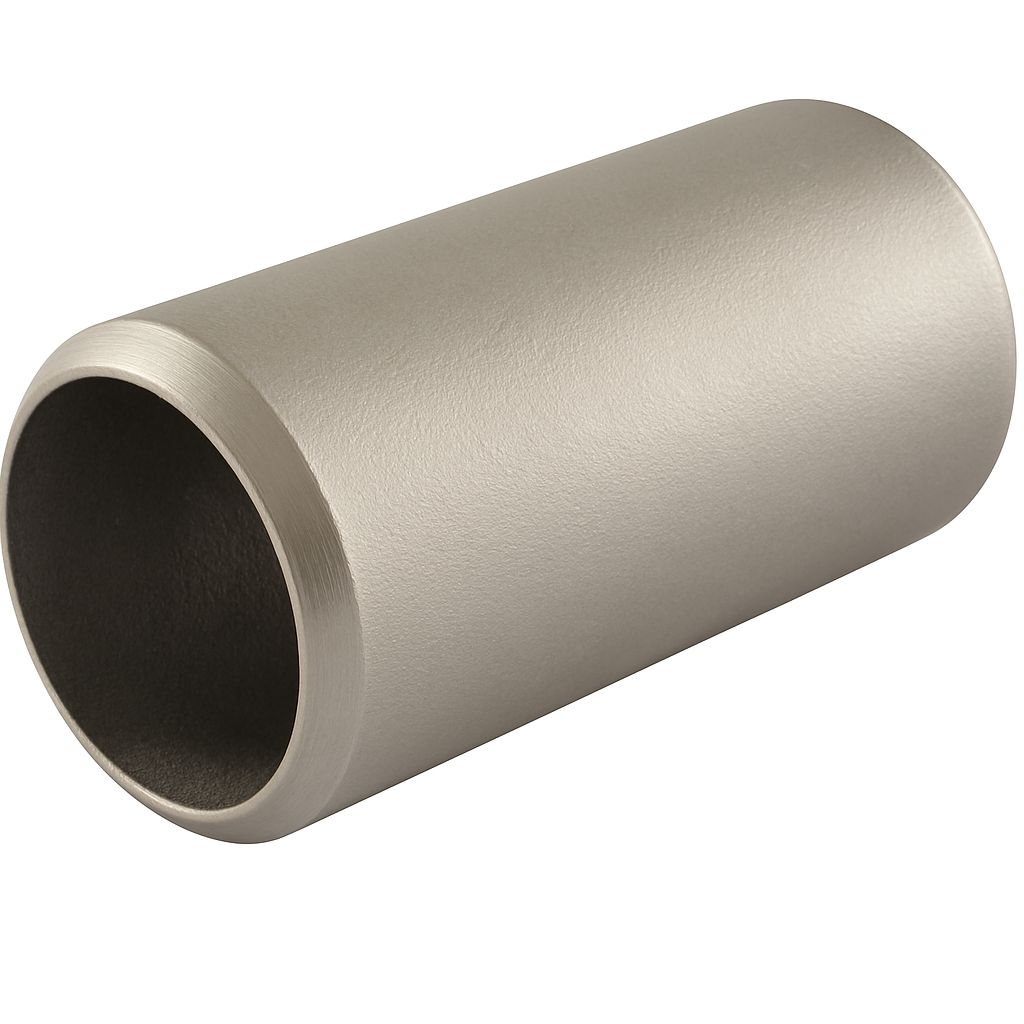

Nipple (Swage Nipple & Pipe Nipple)
A nipple is a short piece of pipe with male threads on both ends, used to connect two
fittings
or extend a pipeline. It includes different types such as Swage Nipple and Pipe
Nipple.
Swage Nipple is used for reducing pipe diameters in high-pressure systems,
while Pipe Nipple is a straight pipe connector used in low to medium-pressure
systems.
