Socket Weld Fitting
At Nyne Overseas, we are a trusted manufacturer and supplier of Socket Weld Fittings designed to meet the highest standards in the industry. We offer a wide range of Socket Weld Elbows, Tees, Couplings, Unions, Crosses, Bushings, and more. Our fittings are available in Stainless Steel grades such as ASTM A182 F304, F304L, F316, F316L, F321, F347, and 904L, along with high-performance Nickel Alloys including Monel, Inconel, Hastelloy, and Nickel 200/201. We also supply Carbon Steel Socket Weld Fittings as per ASTM A105, A694 F42, and A350 LF2, as well as Alloy Steel grades ASTM A182 F1, F5, F9, F11, F22, and F91.
Available in sizes ranging from 1/4" NB to 4" NB and pressure classes of 3000#, 6000#, and 9000#, our Socket Weld Fittings are ideal for high-pressure and high-temperature applications. We specialize in delivering high-quality fittings in Duplex Steel, Super Duplex Steel, Nickel Alloy, Copper Nickel Alloy, and Low Temperature Carbon Steel.
Our extensive product lineup includes Socket Weld Elbow, Tee, Union, Cross, Coupling, Bushing, Plug, Swage Nipple, Welding Boss, Hex Nipple, Barrel Nipple, Welding Nipple, Parallel Nipple, Street Elbow, Hex Nut, Hose Nipple, Adapter and Insert. All fittings are manufactured with precision and strict quality control to meet both international standards and client-specific requirements.
Specification of Socket Weld Fittings| Material | Grades / Standards | Available Types |
|---|---|---|
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L, F321, F347, 904L |
|
| Carbon Steel | ASTM A105, A694 F42, A350 LF2 | |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F22, F91 | |
| Duplex & Super Duplex Steel | UNS S31803 (Duplex 2205), S32750, S32760 | |
| Nickel & High Nickel Alloys | Monel, Inconel, Hastelloy, Nickel | |
| Copper Alloys | Brass, Pure Copper, Cupro Nickel 90/10 (C70600), 70/30 (C71500) |

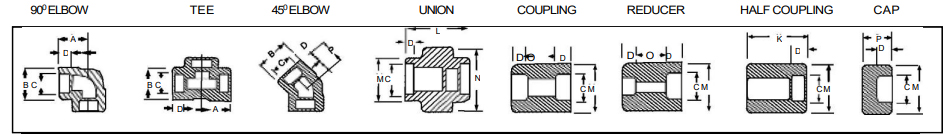

Dimensions of Socket Weld Fittings
| NOM BORE | PIPE O.D. | A | B | C | G | H | K | D | E | F | I | J | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 10.3 | 25 | 25 | 19 | 32 | 22 | - | 11 | 10 | 40 | - | 6 | - |
| 1/4" | 13.7 | 29 | 33 | 22 | 35 | 25 | 27 | 16 | 11 | 43 | 3 | 6 | 32 |
| 3/8" | 17.2 | 33 | 38 | 25 | 38 | 32 | 27 | 17.5 | 13 | 48 | 4 | 8 | 38 |
| 1/2" | 21.3 | 38 | 46 | 29 | 48 | 38 | 33 | 22 | 15 | 51 | 5 | 8 | 46 |
| 3/4" | 26.7 | 44 | 56 | 33 | 51 | 44 | 38 | 27 | 16 | 57 | 6 | 10 | 51 |
| 1" | 33.4 | 51 | 62 | 35 | 60 | 57 | 43 | 35 | 19 | 64 | 6 | 10 | 60 |
| 1 1/4" | 42.2 | 60 | 75 | 43 | 67 | 64 | 46 | 44.5 | 21 | 70 | 7 | 14 | 72 |
| 1 1/2" | 48.3 | 64 | 84 | 44 | 79 | 76 | 48 | 51 | 21 | 79 | 8 | 16 | 80 |
| 2" | 60.3 | 83 | 102 | 52 | 86 | 92 | 51 | 63.5 | 22 | 88 | 9 | 17 | 94 |
| 2 1/2" | 73.02 | 95 | 121 | 64 | 92 | 108 | 64 | 76 | 27 | 118 | 10 | 21 | 122 |
| 3" | 89.0 | 106 | 146 | 79 | 108 | 127 | 68 | 89 | 29 | 121 | 10 | 65 | 140 |
| 4" | 114.5 | 114 | 152 | 79 | 121 | 159 | 75 | 117.5 | 32 | 150 | 13 | 25 | 180 |
